Introduction

DukePro(f) is a schedule-planning desktop application that assists university professors in managing their consultations, through the usage of an intuitive Command-Line Interface (CLI)1 and an easy-to-navigate Graphical User Interface (GUI)2.

It is named DukePro(f) (Duke-Professor) because our project’s target audience is professors, and it is also a nod to our CS2103T iP (individual Project), which was named Duke.

Amidst long hours of lectures and tutorials in the week, professors may still need to cater timeslots for student consultations, which can be hard to come by and difficult to keep track of. This is where Dukepro(f) comes in to help you out!

With DukePro(f), you will be able to:

  • Add, edit, and delete your consultations
  • List all of your consultations, or just your next consultation
  • List your free time slots for consultation booking
  • Block certain time slots to ensure your consultations don’t clash with other commitments
  • And many other small quality of life features!

1Command-Line Interface (CLI): How you interact with the application, i.e. by typing in text (commands).
2Graphical User Interface (GUI): The visual component of DukePro(f), and the form by which you interact with it.

Table of Contents

Acknowledgements

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

:bulb: Tip: The .puml files used to create diagrams in this document can be found in the diagrams folder.

Architecture

The Architecture Diagram given above explains the high-level design of DukePro(f).

Given below is a quick overview of main components and how they interact with each other.

Component Description API Concrete Implementation
Main Consists of two classes called Main and MainApp. It is responsible for initializing the components in the correct sequence and connecting them with each other upon app launch. Upon shut down, it is also responsible for shutting down the components and invoking cleanup methods where necessary. - -
Commons Represents a collection of classes used by multiple other components. - -
Ui The UI of the App. Ui UiManager
Logic The command executor. Logic LogicManager
Model Holds the data of the App in memory. Model ModelManager
Storage Reads data from, and writes data to, the hard disk. Storage StorageManager

How the architecture components interact with each other

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

The Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (in order to prevent outside components’ from being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

Structure of the UI Component

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, EventListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the Logic component.
  • listens for changes to Model data so that the UI can be updated with the modified data.
  • keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
  • depends on some classes in the Model component, as it displays Event object residing in the Model.

Logic component

The API of this component is specified in Logic.java

Here’s a (partial) class diagram of the Logic component:

Logic is split into 2 packages, Command and Parser. This is how Logic works:

  1. When Logic is called upon to execute a command, it uses the ScheduleParser class to parse the user command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddCommand) which is executed by the LogicManager.
  3. The command can communicate with the Model when it is executed (e.g. to add an event).
  4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

The Sequence Diagram below illustrates the interactions discussed above for the execute("delete 1") API call.

Interactions Inside the Logic Component for the `delete 1` Command

:information_source: Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Here are the other classes in Logic (omitted from the earlier class diagram) that are used for parsing a user command:

How the parsing works:

  1. When called upon to parse a user command, the ScheduleParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the ScheduleParser returns back as a Command object.
  2. All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

The API of this component is specified in Model.java

The Model component,

  • stores the schedule data i.e., all Event objects (which are contained in a SortEventList object) and all BlockedSlot objects (which are contained in a SortedBlockedSlotList).
  • stores the currently ‘selected’ Event objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Event> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)
:information_source: Note: An alternative (arguably, a more OOP) model is given below. It has a Tag list in the Schedule, which Event references. This allows Schedule to only require one Tag object per unique tag, instead of each Event needing their own Tag objects.

Storage component

The API of this component is specified in Storage.java

The Storage component,

  • can save both schedule data and user preference data in json format, and read them back into corresponding objects.
  • inherits from both ScheduleStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

SortedEventList

Description

The SortedEventList class provides an abstraction over an internal list of Events. The SortedEventList supports minimal list operations including add, remove and set. Duplicate Events are allowed in this Event list to accommodate repeated consultations with the same person.

Implementation

The SortedEventList class contains 2 fields, internalList and internalUnmodifiableList.

The internalList is an ObservableArrayList that is not sorted.

The internalUnmodifiableList is a SortedList that wraps around the internalList to maintain the sorted property of Events. All changes in the internalList are propagated immediately to the SortedList. An EventComparator class that implements the Comparator interface is created and used when constructing SortedList.

The SortedEventList#asUnmodifiableObservableList() method returns an ObservableList that the Ui can listen to display the list of consultations on the right. This ObservableList will have its Events sorted chronologically. This ObservableList is unmodifiable as part of defensive programming to prevent other classes from adding or deleting events from the ObservableList.

Block Feature

Description

The Block feature allows the user to block off a specified period of time so that it is not possible for a new Event to be created during that time slot.

Implementation

Model

The following class diagram illustrates the implementation of the Block feature.

As shown in the class diagram, both Event and BlockedSlot implement the Overlappable interface. They also have their respective implementations of the SortedOverlappableList interface, SortedEventList and SortedBlockedSlotList respectively. Every Overlappable is able to check if it overlaps with another Overlappable. This allows us to maintain a SortedEventList and a SortedBlockedSlotList in a Schedule and check against both lists when adding/editing an Overlappable.

Logic

The Block feature comes with the following new commands, they are quite self-explanatory:

  1. AddBlockedSlotCommand
  2. ListBlockedSlotsCommand
  3. DeleteBlockedSlotCommand

Existing commands AddCommand and EditCommand also had to be edited (see below) to check for overlaps before adding/editing the Event.

The following steps describe the execution of an AddCommand(EditCommandfollows similarly):

  1. The execute() method of the AddCommand checks if the Event to be added overlaps with any items in the Schedule’s SortedEventList or SortedBlockedSlotList.
    1. If there is an overlap, a SlotBlockedException(which extends CommandException) is thrown, with an error message telling the user if the command was blocked by another event or a blocked slot.
    2. If there is no overlap, the new Event is added and the command succeeds.
Storage

These changes also needed a new JsonAdaptedBlockedSlot in order to save blocked slots created by the user into save file. JsonSerializableSchedule has a new field blockedSlots, which is a list of JsonAdaptedBlockedSlots. When JsonScheduleStorage reads the json file where the data is stored, it constructs a JsonSerializableSchedule based on the events and blockedSlots fields found in the json file, and then converts it to a Schedule object for DukePro(f) to access. A new field blockedSlots, a SortedBlockedSlotList, is added to Schedule such that when it makes a copy of itself and then performs Schedule#resetData(), the blockedSlots data is not erased.

Design Considerations:

  Pros Cons
Alternative 1: Have the TimeSlot class maintain a list of blocked time slots and prevent any new overlapping TimeSlots from being created. Easy to implement. User is able to block out a specific time slot every day(e.g., 1800-1900 for dinner every day). Does not work well with FreeSlots feature. User is unable to choose which days to have the blocked slot as it is applied to every day.
Alternative 2 (currently chosen): Implementation described above. Code is easier to extend with more features. User is able to select the time slot and date to block. More difficult to implement. More testing required. Blocked time slots will have to be added one by one.

We originally intended for the user to block out a certain time slot for every day, making Alternative 1 a possibility, but we eventually decided that Alternative 2 will still be able to achieve this (although a little more effort is required) and is much more flexible.

List Free Slots Feature

Description

The List Free Slots Feature allows users to list down all free slots in the schedule from now to 2359 of the day with the last event/blocked slot.

Implementation

This feature introduces a new command called ListFreeSlotsCommand.

The ListFreeSlotsCommand class has two fields today of type Date and now of type LocalTime. These fields are necessary to allow testing, where a specific date and time can be passed in to the ListFreeSlotsCommand. The sequence diagram below shows the interactions between various components when a ListFreeSlotsCommand is executed.

The execute() method calls model#getFreeSlots() which calls schedule#getFreeSlots(). This command does not update the model. Instead a list of FreeSlot is returned. The execute() method then wraps this list of FreeSlot in a CommandResult to be displayed to user.

The activity diagram below shows the process that occurs in schedule#getFreeSlots() to generate the list of free slots.

The schedule#getFreeSlots() method first combines the SortedEventList and the SortedBlockedSlotList into one list of Overlappables.

The schedule#getFreeSlots() method then iterates through this list of Overlappables to find free slots between events/blocked slots.

Finally, the schedule#getFreeSlots() method removes past freeSlot and returns a list of future freeSlots.

Design Considerations:

  Pros Cons
Alternative 1: Implement FreeSlots as a special Event and store FreeSlots in the SortedEventList Easy to list all free slots in the schedule by using a predicate to select only FreeSlots and updating the filteredList. Adding, deleting and editing event will be harder as the corresponding FreeSlot at that timeslot will need to be deleted or edited. Only one list containing all Events, FreeSlots and BlockedSlots is allowed.
Alternative 2 (current): Go through the schedule each time the user uses the list_free command to find free slots Easy to add, delete and edit events in SortedEventList. Easy to add additional lists such as SortedBlockedSlotList. More computationally intensive as each time the user uses the list_free command, DukePro(f) will iterate through all events and blocked slots to find free slots in between.

Alternative 2 is chosen to allow future implementations such as adding additional lists containing different types of events or commitments.

Today’s Upcoming Events Feature

Description

The Upcoming Events feature lists all the upcoming events scheduled for the current day excluding the ongoing consultation event.

Implementation

The UpcomingEventsCommand class has one field timePredicate of type EventContainsCurrentTimePredicate.

EventContainsCurrentTimePredicate is a class that checks whether an event’s timeslot and date is after the current time and date.

The UpcomingEventsCommand utilizes the updateFilteredEventList() method in the Model class to return an updated filtered list of the upcoming events, filtered by the timePredicate.

The following sequence diagram illustrates the interactions discussed above for the execute(“upcoming_events”) API call:

Next Event Feature

Description

The Next Event feature displays the next event based on the current time in the schedule.

Implementation

The NextEventCommand class has one field timePredicate of type EventContainsCurrentTimePredicate.

EventContainsCurrentTimePredicate is a class that checks whether an event’s timeslot and date is after the current time and date.

The NextEventCommand utilizes the updateFilteredEventList() method in the Model class to return an updated filtered upcoming event that is filtered by the timePredicate. Next, it gets the first event in the filtered list using the overridden method nextEventInTheList() found in the ModelManager class.

The following activity diagram summarizes what happens when a user executes the NextEventCommand:

Filter by Tag Feature

Description

The Filter by Tag feature allows users to find all the consultation events whose tags contain any of the specified keywords (case-insensitive) and displays them as an indexed list.

Implementation

The FilterByTagCommand class has one field tagPredicate of type TagContainsKeywordsPredicate.

TagContainsKeywordsPredicate, found under model/event package, is a class that checks whether an event’s tag(s) matches any of the keyword(s) given.

The FilterByTagCommand utilizes the updateFilteredEventList() method in the Model class to return an updated filtered list of the events that have the specified tag. It is filtered by the tagPredicate.

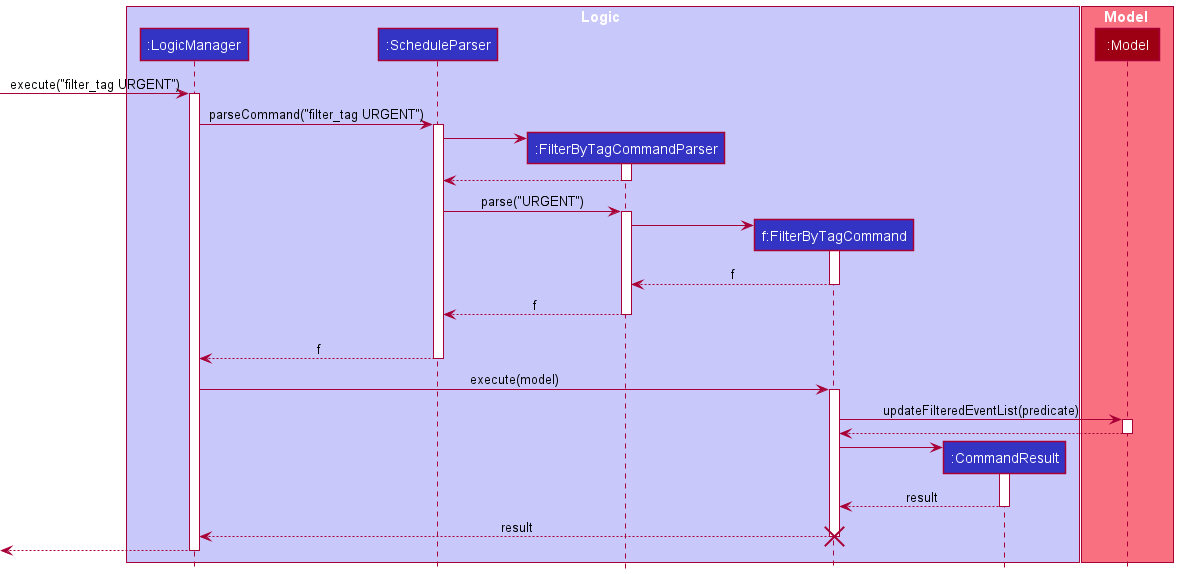

The following sequence diagram illustrates the interactions discussed above for the execute(“filter_tag URGENT”) API call:

Remark feature

Description

The Remark feature is an optional description added to Event. It adds a remark to the consultation event, and is stored internally as a Remark in seedu.address.model.event.Event.

Implementation

The Remark class has one field value of type String.

Unlike the other Objects in Event, all Remark inputs are valid, and hence do not need to check for Validity, unless the input is null.

There are two ways the remark can be added to an Event:

  • AddCommand(Event) method  — Adds a new Event to the list (now with an optional remark description attached to it).
  • EditCommand(Event) method — Edits the remark description of an existing Event on the list.

As a Remark is an optional input, if user does not input any remarks when adding a new event, the Remark will simply be stored as an empty String ”” in Remark in Event as default.

To display the remark in the GUI, a new Label called remark is added to EventCard as well as EventListCard.fxml.

CommandSummary Command

Description

The CommandSummaryCommand class is a command that opens a pop-up window containing a Command Summary of DukePro(f)’s possible commands.

Implementation

This implementation of this command adds another parameter showCommands (which has a default value of false) to the constructor of CommandResult.

When the command command_summary is input by the user, LogicManager parses the input and returns a CommandSummaryCommand. The execute method is called with the showCommands parameter being set to true. This causes MainWindow to execute the handleCommandSummary method, which opens the Command Summary Page.

The sequence diagram below illustrates the interactions within the Logic class mentioned above for the execute(“command_summary”) API call:

Documentation, logging, testing, configuration, dev-ops

Appendix: Requirements

Product scope

Target user profile:

  • is a professor in a university
  • has a need to manage a significant number of commitments (i.e. lectures, tutorials, consultations)
  • prefers desktop apps over other types
  • can type fast
  • prefers typing to mouse interactions
  • is reasonably comfortable using CLI apps

Value proposition: manage daily commitments faster than a typical mouse/GUI driven app

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​
* * * user add a consultation event easily record and remember consultation sessions with my students
* * * user delete a consultation event forget about cancelled or completed consultation events and free up my schedule
* * * user list out all my consultation events find out what consultation events I have
* * * user list out all my free slots find a suitable slot for a new consultation booking
* * * user save all of my data I enter into the app view the data again the next time I open the app
* * * user with many commitments ensure existing and to-be-added consultation events do not have timings that overlap make sure I don’t have commitments that clash with each other
* * * busy user with many daily events search for a consultation event by name locate the details of consultation events without going through the entire list
* * * user block certain time slots reserve some private time for family/personal commitments
* * * user unblock time slots I have previously blocked free time slots for consultations
* * * user list out all the time slots I have previously blocked find out which time slots I cannot have consultations at because of existing commitments
* * * meticulous user add remarks to my events add additional details to my consultation events that I need to take note of
* * * user edit a previously added event update changes in the details of my existing consultation event
* * * user exit the app
* * user add tags to my consultation events group consultation events more easily
* * user I can filter my consultation events by tags I can find consultation events with certain tags more easily
* * inexperienced user bring up a link to access the product website receive help regarding any problems I have with the app
* * impatient user clear the list of consultation events empty out my list of consultation events quickly instead of having to delete them one by one
* * user list the upcoming consultation events in the day take note of what I should make preparations for
* * user view the next upcoming consultation event find out what my next consultation event is
* * new user have sample data in the app the first time I open it up play around with the app easily
* * user print my schedule with censored details send it to my students to see my available timings while maintaining confidentiality
* inexperienced user see command usage instructions/examples refer to the instructions to learn how to optimize my usage of the app

Use cases

For all use cases below, the System is the DukePro(f) and the Actor is the User, unless specified otherwise.

UC01: Delete an event

MSS

1.  User requests to list events.
2.  The System shows the list of events.
3.  User requests to delete a specific event in the list.
4.  The System deletes the event.

    Use case ends.

Extensions

* 2a. The list is empty.

  Use case ends.

* 3a. The given index is invalid.

    * 3a1. The System shows an error message.

      Use case resumes at step 2.

UC02: Edit an event

MSS

1. User requests to list events.
2. The System shows the list of events.
3. User requests to edit a specific event in the list and provides the
   necessary information for the fields to edit.
4. The System shows the list of events, with the newly edited event.

Extensions

* 2a. The list is empty.

  Use case ends.

* 3a. The given index is invalid.

    * 3a1. The System shows an error message.

      Use case resumes at step 2.

* 3b. The given fields do not exist.

    * 3b1. The System shows an error message.

      Use case resumes at step 2.

* 3c. The given fields exist, but the given information is improperly formatted.

    * 3c1. The System shows an error message.

      Use case resumes at step 2.

UC03: Search for an event

MSS

1. User requests to search events.
2. The System shows a list of events which have the search term in their name.

Extensions

* 2a. No matches to the search term.

  *2a1. The System shows an empty list.

  Use case ends.

UC04: Block slots

MSS

1. User blocks out a time slot: 2021-11-01, 1800-1900.
2. User accidentally tries to key in a new event at the above time slot.
3. The System rejects the command and tells the User that the specified
   time slot coincides with a blocked slot.

Extensions

* 1a. Time slot entered is already blocked.

  * 1a1. The System rejects the command and tells the User that the specified
         time slot coincides with a blocked slot.

  Use case ends.

* 1b. Time slot entered coincides with an event.

  * 1b1. The System rejects the command and tells the User that the specified
         time slot coincides with an event.

  Use case ends.

UC05: List all upcoming events for the day

MSS

1. User requests to view today's upcoming consultation events.
2. DukePro(f) displays all the upcoming events.

   Use case ends.

Extensions

* 1a. User inputs the wrong format for the command.

  * 1a1. An error message telling the user that it's an unknown command.

    Use case ends.

* 1b. DukePro(f) has no upcoming consultation events.

  * 1b1. An empty events list is displayed with a message indicating that
         there are 0 upcoming events.

    Use case ends.

UC06: List the next consultation event for the day

MSS

1. User requests to view the next consultation event.
2. DukePro(f) displays the next event.

   Use case ends.

Extensions

* 1a. User inputs the wrong format for the command.

  * 1a1. An error message telling the user that it's an unknown command.

    Use case ends.

* 1b. DukePro(f) has no events scheduled.

  * 1b1. An empty events list is displayed with a message indicating that
         there are 0 events scheduled.

    Use case ends.

UC07: Filter consultation events by tags

 MSS

1. User requests to filter the consultation events by tag(s).
2. DukePro(f) displays the events that have the specified tag(s).

   Use case ends.

Extensions

* 1a. User inputs the wrong format for the command.

  * 1a1. An error message is displayed with the correct format.

    Use case ends.

* 1b. DukePro(f) has no consultation events that have the tag(s) specified.

  * 1b1. An empty events list is displayed with a with a message indicating 0
         events are matched with the tags specified.

    Use case ends.

Non-Functional Requirements

  1. Should be able to hold up to 1000 events without a noticeable sluggishness in performance for typical usage.
  2. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
  3. The product should be for a single user.
  4. The data should be stored locally and should be in a human editable text file.
  5. The software should work on all Mainstream OS.
  6. The software should work without requiring an installer.
  7. Package everything into a single JAR file.
  8. The GUI should work well standard screen resolutions 1920x1080 and higher and for screen scales 100% and 125%.
  9. The GUI should be usable for resolutions 1280x720 and higher and for screen scales 150%.
  10. The Developer Guide and User Guide should be PDF-friendly.
  11. The product and its features should be testable under exam conditions.
  12. Schedule should be displayed in an easy-to-read format.
  13. JAR file should not exceed 100MB.
  14. Document files should not exceed 15MB per file.

Glossary

  • Event: A consultation event with a student that a university professor has arranged to go for
  • Mainstream OS: Windows, Linux, Unix, OS-X
  • Free slots: Time slots available for adding consultation events by a university professor.
  • Blocked slots: Time slots reserved for personal commitments by a university professor.

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

  1. Initial launch

    1. Download the jar file and copy into an empty folder.

    2. Double-click the jar file. Expected:

      Shows the GUI with a set of sample events. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Deleting an event

  1. Deleting an event while all events are being shown

    1. Prerequisites: List all events using the list command. Multiple events in the list.

    2. Test case: delete 1
      Expected: First event is deleted from the list. Details of the deleted event shown in the status message. Timestamp in the status bar is updated.

    3. Test case: delete 0
      Expected: No event is deleted. Error details shown in the status message. Status bar remains the same.

    4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Saving data

  1. Dealing with missing/corrupted/invalid schedule.json file in data directory
    1. Test case: missing schedule.json file
      Expected:

      New schedule with sample events.
  2. Invalid data
    1. Test case schedule.json file with data:
      missing
    2. Test case schedule.json file with data with overlapping time slots:
      {
  "events" : [ {
    "name" : "Jacob Ng",
    "date" : "2021-11-12",
    "startTime" : "1300",
    "endTime" : "1400",
    "location" : "The Deck",
    "tagged" : [ "URGENT", "CS1231S" ],
    "remark" : "Cool student"
  }, {
    "name" : "Ruth Poh",
    "date" : "2021-11-12",
    "startTime" : "1300",
    "endTime" : "1400",
    "location" : "Central Library",
    "tagged" : [ "supplementary" ],
    "remark" : "Coool student"
  } ],
  "blockedSlots" : [ ]
}
    3. Test case schedule.json file with data with invalid fields:
      {
  "events" : [ {
  "name" : "Jacob Ng",
  "dat" : "2021-11-12",
  "startTime" : "1300",
  "endTime" : "1400",
  "location" : "The Deck",
  "tagged" : [ "URGENT", "CS1231S" ],
  "remark" : "Cool student"
  } ],
  "blockedSlots" : [ ]
}

      Expected for test cases 1 to 3 above:

      Empty schedule.
